Eliminate fake and inferior products!Export Genuine NF-468 network cable tester RJ45 RJ11 telephone line tester Adjustable test speed(without battery)If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount.
This product can be customized

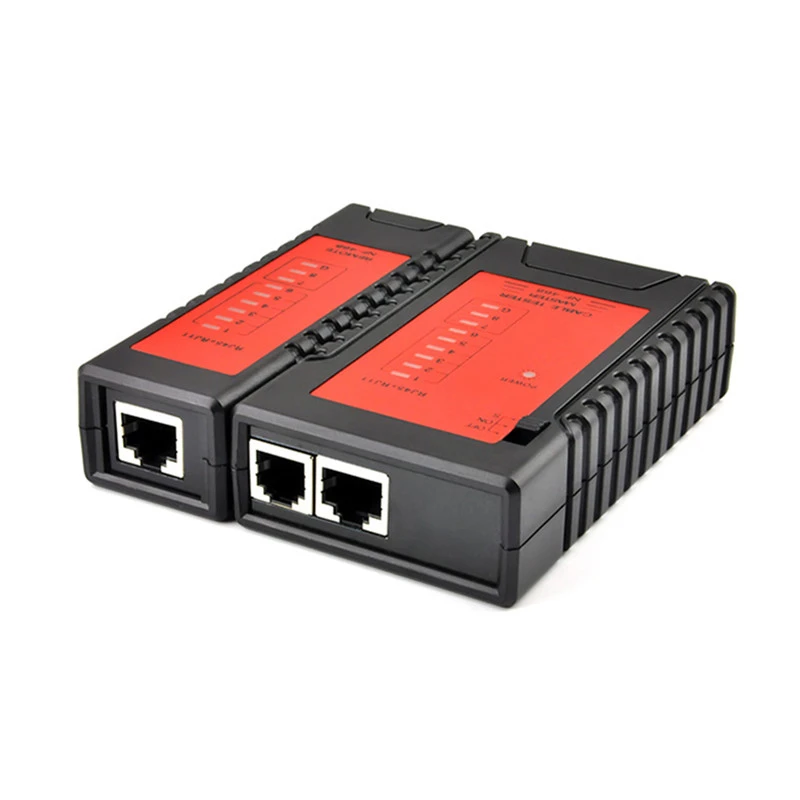

Product Name: Genuine network cable tester RJ45 RJ11 telephone line tester Adjustable test speed(Without battery)
Product features
NF-468 cable tester, sensor network, multi-purpose telephone, computer network cable tester
NF-468 dual-use multi-function cable tester
Automatic scanning mode, quick test, streamlined appearance, ergonomic design.
Smooth lines and simple, drop, anti-light design, more in line with the construction site.
Packing list: Host deputy machine instructions (without batteries)
Specifications:
Test Cable: RJ11, RJ45
Power: DC 9V laminated battery
Power consumption: 25MA
Volume: 10.5 * 10.5 * 2.6 mm
Weight: 200G
Features:
1. twisted pair 1,2,3,4,5,6,7,8, G line for each (p) test to determine which one can distinguish (on) the wrong line, short circuit and open circuit.
2. Switch ON the normal test speed, "S" is a slow test mode, M is the manual mode.
3. Twisted pair test: Turn on the power, the network cable plugs were inserted into both main tester and remote tester
Host indicator from 1 to G-by-order shining example of the following figure:
Main Tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6 ------ (RJ12)
1-2-3-4 ---------- (RJ11)
If the wiring is not normal, according to the following cases show:
A. When there is a network cable, such as the 3rd line circuit, the main tester and remote tester 3 lights are not bright.
B. When there are several lines unreasonable, then a few lines are off, when the cable is less than 2 wire communication, the lights are not bright.
C. When the two lines out of order, for example, 2,4 lines out of order, the display is as follows:
Main tester unchanged: 1-2-3-4-5-6-7-8-G
Remote tester is: 1-4-3-2-5-6-7-8-G
4. When the network cable has two short circuit, the main tester display is not lit, and remote tester display two lines shorted lights are shimmering, if three or more (including three) short circuit shorted a few all Light line numbers are not bright.
If test the network cable between patch panels and wall seat module, you need two matching jumper root (eg 110P4-RJ45) lead to the tester.
Product Pictures and Graphic Instructions
Характеристики
- Бренд
- BELNET
- Тип
- Кабельный тестер
- Номер модели
- NF-468
- Упаковка
- Да
