58 мм минипринтер UART Термальность pos получения Билл Micro Панель принтер withttl Порты и разъёмы и несколько языков для такси печати

Описание

58MM UART Thermal Pos Receipt Bill Micro Panel Printer With TTL Or Rs232 Port Support Multiple Languages For Taxi Printing

Feature:

lSmart appearance

lMicro Panel Printer

lEasy paper loading

lLow noise thermal printing

lDifferent interfaces optional

lFront panel make paper replacement easily

lEasily embedded to any kinds of instruments and meters

lPrinter control panel built-in GB18030 Chinese character, thoroughly remove the uncommon words of anguish. and it can be updated with different language fonts

lCan support Max.22MM (diameter) paper roll, around 16-20 meter.

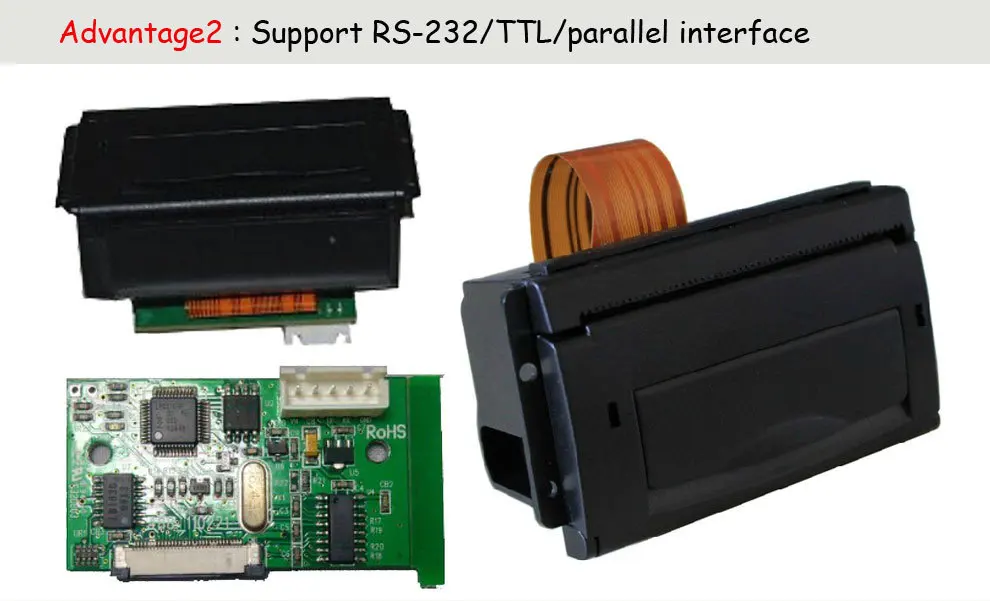

lOptional serial interface (RS-232C, TTL, USB)

lRich of graphics / curves / characters print function

lSupport 5V-9V wide power voltage, or 12V

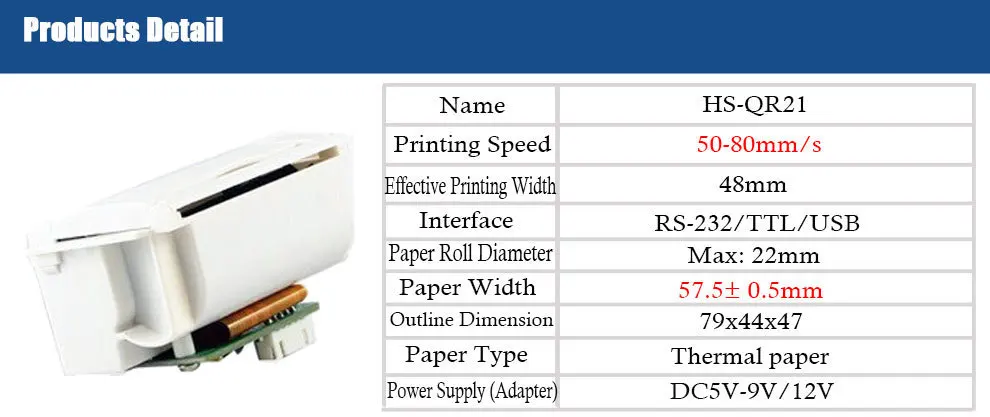

Parameters

Print	Printing Method	Thermal Dot Line
	Printing Speed	50-80mm/s
	Resolution	8 dots/mm, 384 dots/line
	Effective Printing Width	48mm
Character	Character Set	ASCII,GB2312-80(Chinese)
Character	Print Font	ANK:9X17,12X24, GBK:24×24
Paper Spec	Paper Type	Thermal paper
	Paper Width	57.5± 0.5mm
	Paper Thickness	0.06 to 0.07mm
	Roll Core Inner Diameter	13mm(min.)
	Paper Roll Diameter	Max: 22mm
Reliability	MCBF	5 million lines
Interface		RS232/TTL/USB
Insert Depth		40mm
Power Supply (Adapter)		DC5V-9V or 12VDC
Physical	Outline Dimension (WxDxH) mm	79x44x47 (with controller board)
	Installation Port Size	71x43mm
	Color	Black/Beige
Environment	Operating Temp	5°C ~ 50°C
	Operating Humidity	10% ~ 80%
	Storage Temp	-20°C ~ 60°C
	Storage Humidity	10% ~ 90%
